Артикул TTF-EN-306
Антенна АФАР
Продукция TTF Electronic. Антенна АФАР. Характеристики — на странице серии.
- Категория
- Чипсетные решения, Чипсеты T/R
- Модель
- TTF-EN-306
| Модель | Частота | Pol. | Элементы | Пиковая мощность на канал | Диапазон сканирования | G/T | EIRP | Sidelobe | Потребляемая мощность |
| B256X02 | 9.0-10.0GHz | H-Polarization | 256(16×16) | ≥33dBm(2W) | ±45° | ≥0.3dB/K | ≥84.9dBm | ≤-25dB | ≤600W |
| B384X02 | 9.0-10.0GHz | H-Polarization | 384(16×24) | ≥33dBm(2W) | ±45° | ≥1.2dB/K | ≥91.3dBm | ≤-25dB | ≤800W |
| C256X10 | 9.0-10.0GHz | Dual-Pol | 2048(32×64) | ≥35dBm(2W) | ±45° | TX≥33.5dB | ≥92dBm | Az≤-30dB | ≤3000W |
|
|
|
|
| B256X02
X-Band 256 Elements 16×16 | H-Pol | 2W/Ch 350×350×70mm | ≤8kg |
B384X02
X-Band 384 Elements 16×24 | H-Pol | 2W/Ch 400×445×75mm | ≤10kg |
C256X10
X-Band 2048 Elements DBF 32×64 | Dual-Pol | 2W/Ch 1260×760×185mm | ≤120kg |

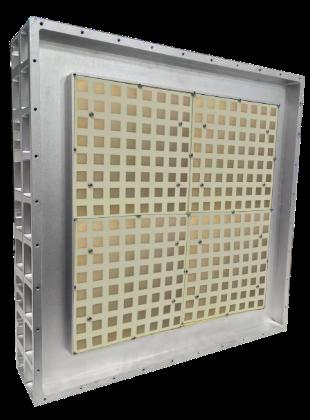

X-Band 256-Element Phased Array Antenna
1.Обзор
This product is an X-band 256-element two-dimensional active phased array antenna featuring a 16 × 16 element configuration, with a per-channel peak puled power of 2W. The antenna supports excitation signal transmission, echo signal reception, beam synthesis, and phase and amplitude calibration. It mainly consists of an antenna array, T/R modules, beam control circuitry, feeding networks, sumand-difference networks, and thermal management modules. The product is suitable for two-dimensional active phased array radar systems.
2.Основные технические характеристики
|
➢ Operating Frequency: 9.0~10.0GHz ➢ Array Size: 16×16 ➢ Polarization: Horizontal polarization ➢ Per-Channel Peak Power: ≥33dBm ➢ Scanning Range: ±45° ➢ Receiving Sidelobe Level: ≤-25dB ➢ Difference Beam Null Depth: ≤-21dB ➢ Beamwidth: Tx6°, Rx7.2° ➢ Maximum Duty Cycle: 30% ➢ G/T: ≥0.3dB/K |
➢ ERIP: ≥84.9dBm ➢ Amplitude Consistency of Receive Channels: ≤1dB ➢ Phase Consistency of Receive Channels : ≤5° ➢ Power Consumption: ≤600W ➢ Dimensions: 350mm×350mm×70mm ➢ Weight: ≤8kg ➢ Power Supply Voltage: +24V DC input ➢ RF Interface: SMA-K ➢ Operating Temperature : -40℃~+70℃ |
|
3.Особенности
➢ Multi-chip integration
➢ Compact design
➢ Two-dimensional electronic beam scanning
➢ Low-profile structure
➢ Phased Array Radar

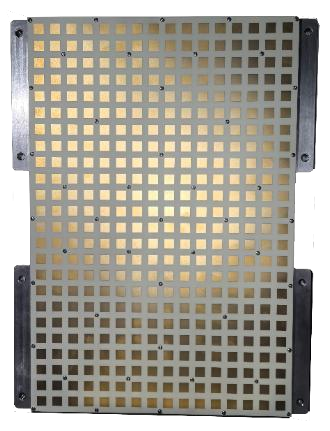

X-Band 384-Element Phased Array Antenna
1.Обзор
This product is an X-band 384-element two-dimensional active phased array antenna featuring a 16×24 element configuration, with a per-channel peak puled power of 2W. The antenna supports excitation signal transmission, echo signal reception, beam synthesis, and phase and amplitude calibration. It mainly consists of an antenna array, T/R modules, beam control circuitry, feeding networks, sum-anddifference networks, and thermal management modules. The product is suitable for two-dimensional active phased array radar systems.
2.Основные технические характеристики
|
➢ Operating Frequency: 9.0~10.0GHz ➢ Array Size: 16×24 ➢ Polarization: Horizontal polarization ➢ Per-Channel Peak Power: ≥33dBm ➢ Scanning Range: ±45° ➢ Receiving Sidelobe Level: ≤-25dB ➢ Difference Beam Null Depth: ≤-21dB ➢ Beamwidth: Tx6°, Rx7.2° ➢ Maximum Duty Cycle: 30% ➢ G/T: ≥1.2dB/K |
➢ ERIP: ≥91.3dBm ➢ Amplitude Consistency of ReceiveChannels: ≤1dB ➢ Phase Consistency of Receive Channels : ≤5° ➢ Power Consumption: ≤800W ➢ Dimensions: 400mm×445mm×75mm ➢ Weight: ≤10kg ➢ Power Supply Voltage: +24V DC input ➢ RF Interface: SMA-K ➢ Operating Temperature : -40℃~+70℃ |
|
3.Особенности
➢ Multi-chip integration
➢ Compact design
➢ Two-dimensional electronic beam scanning
➢ Low-profile structure

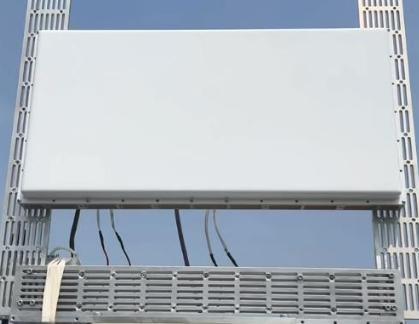

X-Band 2048-Element DBF Phased Array Antenna
1.Обзор
This product is a digital-analog hybrid two-dimensional DBF array antenna, consisting of 32EL × 64AZ of elements, totaling 2048 antenna units. 32 elements in each row are combined to form one analog signal output, resulting in 64 RF outputs in total, which realizes multibeam forming in the elevation plane.The peak output power of each element is 2 W. The antenna supports excitation signal transmission, echo signal reception, beam synthesis, and phase, amplitude calibration and internal calibration function.
2.Основные технические характеристики
|
➢ Operating Frequency: 9.0~10.0GHz ➢ Array Size: 32×64 ➢ Polarization: Horizontal polarization ➢ Per-Channel Peak Power: ≥35dBm ➢ Scanning Range: ±45° ➢ Antenna Gain: Tx: ≥33.5dB(boresight at mid-frequency, cosecant-squared beam shaping) Rx: ≥34.5dB(boresight, pencil beam) ➢ Receiving Sidelobe Level (After Taylor weighting): AZ≤-30dB, EL≤-27dB |
➢ Beamwidth: Tx: EL(Beam shaping), AZ≤6°, Rx(Uniform weighting): AZ≤1.2°, EL≤3.2° ➢ Maximum Duty Cycle: 30% ➢ Power Consumption: ≤3000W ➢ Dimensions: 1260mm×760mm×185mm ➢ Weight: ≤120kg ➢ Power Supply Voltage: +28V DC input ➢ RF Interface: SSMA-K ➢ Operating Temperature : -40℃~+50℃ |
|
